同步帶是以鋼絲繩或玻璃纖維為強力層，外覆以聚氨酯或氯丁橡膠的環形帶，它綜合了皮帶傳動、鏈傳動、齒輪傳動的優點。傳動時，傳動比準確，對軸作用力小，結構緊湊，耐油，耐磨性好，抗老化性能好，下面來講講同步帶連接方法及安裝使用注意事項。

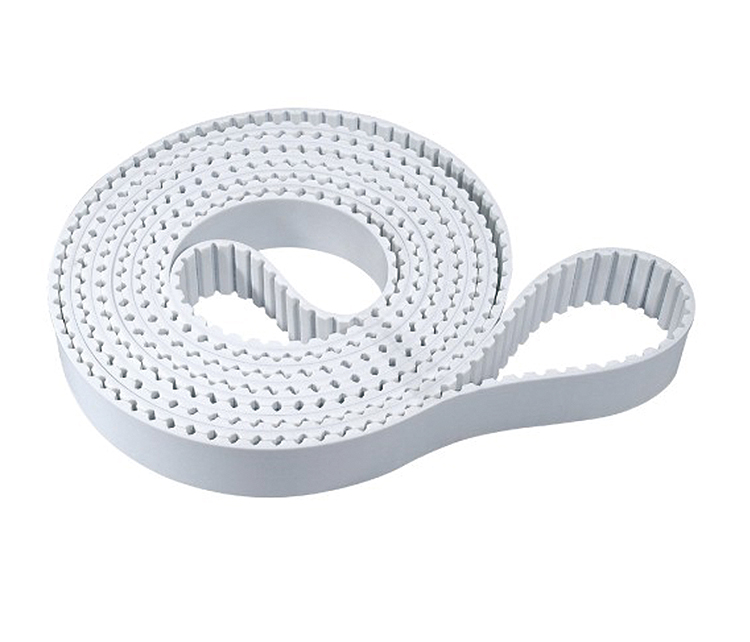

Synchronous belt is an annular belt with steel wire rope or glass fiber as the strong layer and polyurethane or neoprene as the outer cover. It integrates the advantages of belt drive, chain drive and gear drive. During transmission, the transmission ratio is accurate, the force on the shaft is small, the structure is compact, the oil resistance, wear resistance and aging resistance are good. Next, let's talk about the connection method of synchronous belt and the precautions for installation and use.

同步帶的連接方法

Connection method of synchronous belt

1、用高分子的溶劑膠膠水。

1. Use polymer solvent glue.

2、要把皮帶兩邊打成對齒，可以接駁起來；一般來說只有開口同步帶會需要向同步帶接駁起來，不過也有在同步帶斷裂或者磨損的情況下需要將同步帶接駁起來。

2. The two sides of the belt should be paired and connected; Generally speaking, only the open timing belt needs to be connected to the timing belt, but there are also cases where the timing belt needs to be connected when it is broken or worn.

3、用加壓加熱的壓機，設定一定時間、壓力，等皮帶溫度到了冷卻下來，放置一會就好了。

3. Use a press that is pressurized and heated, set a certain time and pressure, and wait for the belt temperature to cool down, and then place it for a while.

同步帶安裝注意事項

Precautions for timing belt installation

1、安裝同步帶時，如果兩帶輪的距可以移動，須先將帶輪的距縮短，裝好同步帶后，再使距復位。若有張緊輪時，先把張緊輪放松，然后裝上同步帶，再裝上張緊輪。

1. When installing the synchronous belt, if the center distance of the two pulleys can be moved, the center distance of the pulley must be shortened first, and then the center distance can be reset after installing the synchronous belt. If there is a tension wheel, loosen the tension wheel first, then install the synchronous belt, and then install the tension wheel.

2、往帶輪上裝同步帶時，切記不要用力過猛，或用螺絲刀硬撬同步帶，以防止同步帶中的抗拉層產生外觀覺察不到的折斷現象。設計帶輪時，好選用兩軸能互相移近的結構，若結構上不允許時，則好把同步帶與帶輪一起裝到相應的軸上。

2. When installing the synchronous belt on the pulley, remember not to use excessive force or pry the synchronous belt hard with a screwdriver to prevent the tensile layer in the synchronous belt from breaking imperceptibly. When designing the pulley, it is better to choose the structure that the two shafts can move close to each other. If the structure does not allow, it is better to install the synchronous belt and pulley on the corresponding shaft together.

3、控制適當?shù)某鯊埦o力。

3. Control the appropriate initial tension.

4、山東同步帶傳動中，兩帶輪軸線的平行度要求比較高，否則同步帶在工作時會產生跑偏，甚跳出帶輪。軸線不平行還將引起壓力不均勻，使帶齒早期磨損。

4. In Shandong synchronous belt drive, the parallelism of the axes of the two pulleys is required to be relatively high, otherwise the synchronous belt will deviate and even jump out of the pulley when working. Non parallel axes will also cause uneven pressure and early wear of belt teeth.

5、支撐帶輪的機架，須有足夠的剛度，否則帶輪在密碼鎖運轉時就會造成兩軸線的不平行。

5. The frame supporting the pulley must have sufficient stiffness, otherwise the two axes will not be parallel when the pulley operates in the password lock.

輸送帶、同步帶這類屬于持久性易耗品，日常使用要多注意維護，要儲備1-2條替換備用，一旦發現同步帶出現問題或斷裂，可及時進行維修替換，以免影響生產、造成損失！更多相關內容就來我們網站http://ujkdbkh.cn看看吧。

Conveyor belts and synchronous belts are durable consumables. Pay more attention to maintenance in daily use. Reserve 1-2 replacement belts for standby. Once the synchronous belt is found to have problems or breaks, it can be repaired and replaced in time to avoid affecting production and causing losses! Come to our website for more relevant content http://ujkdbkh.cn Take a look.
