同步帶裝卸時需要注意什么?這個具體要看使用的是什么機子，或者我們可以參考一下同步帶的安裝方法，如果我們的是同步帶加擋塊這樣的應該也可以用這樣的方法。

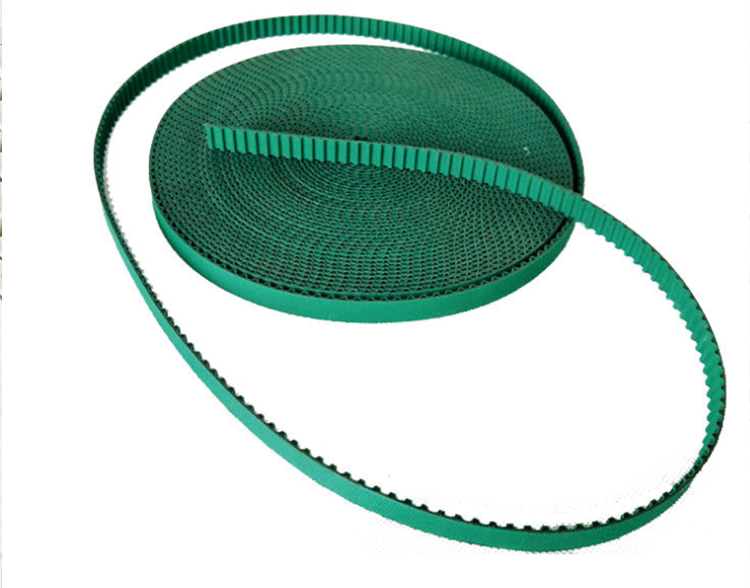

What should be paid attention to when loading and unloading the timing belt? This depends on what kind of machine is used. Or we can refer to the installation method of the timing belt. If our timing belt is equipped with a stop, this method should also be used.

安裝同步帶時，如果兩帶輪的距可以移動，必須先將帶輪的距縮短，裝好同步帶后，再使距復位。若有張緊輪時，先把張緊輪放松，然后裝上同步帶，再裝上張緊輪。

When installing the synchronous belt, if the center distance of the two pulleys can be moved, the center distance of the pulley must be shortened first. After installing the synchronous belt, reset the center distance. If there is a tensioner, loosen the tensioner first, then install the synchronous belt, and then install the tensioner.

往帶輪上裝同步帶時，切記不要用力過猛，或用螺絲刀硬撬同步帶，以防止同步帶中的抗拉層產生外觀覺察不到的折斷現象。設計帶輪時，選用兩軸能互相移近的結構，若結構上不允許時，則把皮帶與帶輪一起裝到相應的軸上。

When installing the synchronous belt on the pulley, remember not to use too much force or pry the synchronous belt with a screwdriver to prevent the tensile layer in the synchronous belt from breaking imperceptibly. When designing the pulley, the structure that two shafts can move close to each other shall be selected. If the structure does not allow, the belt and pulley shall be installed on the corresponding shaft together.

控制適當?shù)某鯊埦o力。

Control the appropriate initial tension.

山東同步帶傳動中，兩帶輪軸線的平行度要求比較高，否則同步帶在工作時會產生跑偏，甚跳出帶輪。軸線不平行還將引起壓力不均勻，使帶齒早期磨損。

In Shandong synchronous belt drive, the parallelism of the axes of the two pulleys is required to be high, otherwise the synchronous belt will deviate or even jump out of the pulley. Non parallel axes will also cause uneven pressure and early wear of belt teeth.

支撐帶輪的機架，必須有足夠的剛度，否則帶輪在密碼鎖運轉時就會造成兩軸線的不平行。

The frame supporting the pulley must have sufficient rigidity, otherwise the two axes will not be parallel when the pulley operates in the password lock.

此外同步帶可以起到一個阻擋物料掉落的作用，可以運輸更多的物料，但是很多廠家老板會有遇到這樣的問題：輸送小的物料，或者粉末物料的時候，裙邊接口處經常藏料，還會發生漏料的現象，原因便是：

In addition, the synchronous belt can play a role in preventing the falling of materials, and can transport more materials. However, many factory bosses will encounter such problems: when transporting small materials or powder materials, there are often hidden materials at the skirt interface, and material leakage will occur. The reasons are as follows:

在運行時，兩條邊的高度發生變化，一邊高一邊低，物料就會被分散到低端。

During operation, the height of the two sides changes, one side is high and the other is low, and the materials will be dispersed to the low end.

同步帶沒有跑偏，也發生漏料的情況，可能是輸送帶表面有損壞，物料從間隙脫落。

The synchronous belt does not deviate, and material leakage also occurs. It may be that the surface of the conveyor belt is damaged and the material falls off from the gap.

同步帶的裙邊太低，在運轉時，由于慣性力就會發生撒料。

The skirt of the timing belt is too low. During operation, the material will be scattered due to the inertia force.

關于問題的話，山東同步帶廠家建議您這個真的要對應自己所使用的機器才能得知具體的注意事項，如果不清楚使用的機子怎么樣的也可以參考一下上面所提到的幾項，可以嘗試的安裝一下，如果實在有搞不懂的，建議大家還是找輸送帶廠家協助完成。

As for the problem, Shandong synchronous belt manufacturer suggests that you really need to correspond to the machine you are using to know the specific precautions. If you don't know what kind of machine you are using, you can also refer to the items mentioned above and try to install it. If you don't understand the fruit, it is recommended that you find a professional conveyor belt manufacturer to assist you.
